.This 1.0 MPi 3 cylinder engine was introduced in 2011 in the Volkswagen up, and in 2012 the Seat Mii and the Skoda Citigo.
.It is a 3 cylinder twin camshaft unit, equipped with Variable Valve Timing (VVT) on the tri-lobed inlet camshaft sprocket with a conventional timing belt drive system.
.Locking camshaft when checking and adjusting timing.
Special tool for simple insertion of camshaft fitting when checking the valve timing.

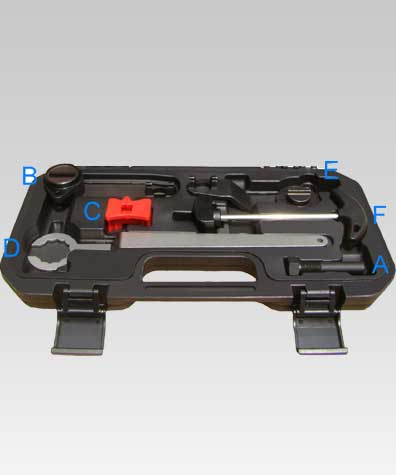

Item | Description | OEM |
A | Crankshaft Locking Pin | T10340 |
B | Camshaft Setting Plate | T10477 |
C | Camshaft Sprocket Locking Tool | T10476 |
D | Tensioner Adjustment Tool | T10499 |
E | Camshaft Lock | T10494 |
F | Assembly Tool | T10487 |
.Application:
For checking and adjusting the motor control periods, 1.0 (3 cylinder) petrol engine in:
.Seat: Mii from Bj. 2011
.Skoda: Citigo
.Volkswagen: Up!
.1.0 Petrol Engine: CHYA, CHYB, CPGA
.Type /Model: Audi A3 2013 >, Golf 2013 >, Octavia 2013 >, Leon 2013 >Assembly Group: 4cylinder injection engine (1.4 L direct injection engine, turbocharger)4-cylinder injection engine (1.2 L direct injection engine, turbocharger)
.For example:
.Audi: A3 2013 > 4-cylinder 1.4 l TFSi 4V direct injection engine EA 211
