.Developed to change the cam belt on the single and twin cam belted diesel engines found in the Volvo range. The kit provides the locking tools required for both timing belt change and the dismantling of the gear driven cams fitted to the twin cam equipped engines in the Volvo range.

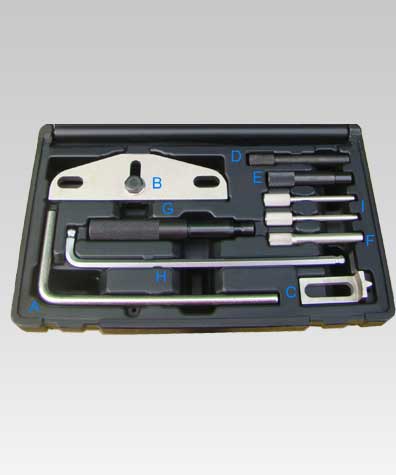

Item | Description | OEM |
A | Flywheel Locking Pin | 999 7 121 |
B | Flywheel Holding Tool Plate | 999 7 119 |
| Flywheel Holding Tool Tooth/Bolt | 999 7 119 |
| M8 Setscrew |
|
| M8 Washer |
|
C | Flywheel Holding Tool | 999 7 120 |
D | 8 mm Locking Pin | 999 7 169 |
E | Camshaft Locking Pin | 999 7 007 |
F | Camshaft Locking Pin | 999 7 122 |
G | Camshaft Locking Pin | 999 7 005 |
H | 6 mm Ball end Hex Key |
|
I | 5 00 Setting Pin | 999 7 169 |
Manufacture | Mode | Size | Engine Code | Year |
Volvo | C70 | 2.0 L+ 2.4 L 5 Cylinder Engines | D5204T2, D5204T3, D5204T5, D5244T, D5244T10, D5244T11, D5244T13, D5244T14, D5244T15, D5244T16, D5244T17, D5244T18, D5244T19,D5244T2, D5244T3, D5244T4, D5244T5, D5244T6, D5244T7, D5244T8, D5244T9, D5204T | 06- |
S40 |
|
| 04- | |
S60 |
|
| 05- | |
S80 |
|
| 06- | |
V50 |
|
| 04- | |
V60 |
|
| 10 | |
V70 |
|
| 08- | |
V70 XC |
|
| 01- | |
XC60 | 2.0 L+ 2.4 L 5 Cylinder Engines | D5204T2, D5204T3, D5204T5, D5244T, D5244T10, D5244T11, D5244T13, D5244T14, D5244T15, D5244T16, D5244T17, D5244T18, D5244T19,D5244T2, D5244T3, D5244T4, D5244T5, D5244T6, D5244T7, D5244T8, D5244T9, D5204T | 08- | |
XC70 | 08- | |||
XC90 | 02- | |||
C30 | 06- | |||
| 1.6 L 4 Cylinder Engines | D4264T, D4162T, D4164T2 |
| |
| 1.9 L 4 Cylinder Engines | D4192T3, D4192T4 |
| |
| 2.0 L 4 Cylinder Engines | D4204T, D4204T2, D4164T |
|
