.Introduction:
kit covering engine timing and belt replacement on VAG 1.2 to 2.0 TDi Pumpe Duse and 1.2, 1.6, 2.0TDi Common Rail diesels.
Also covers these engines fitted in Ford, Dodge and Mitsubishi models.

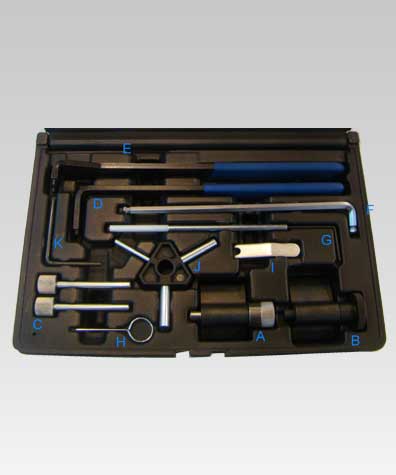

Kit contains Crankshaft Locking tools for both oval and round crank gears, Camshaft Locking Pins and Tensioner Adjustment tools.
Item | Description | OEM VAG | OEM Dodge | OEM Ford | OEM Mitsubishi |
A | Crankshaft Locking Tool (Oval Gears) | T10100 |
|
|
|
B | Crankshaft Locking Tool (Round Gears) | T10050 | 9883 | 310-085, 23-059 | MB995209 |
C | Camshaft Locking Pins (2 Per Kit) | 3359, T20102 | 9882 |
| MB995206 |
D | Tensioner Adjuster | 3387, U30009A |
| 303-1053 | MB995207 |
E | Tensioner Adjuster | T10020 |
|
|
|
F | Tensioner Adjuster | T10264 |
|
|
|
G | Tensioner Locking Tool | T10265 |
|
|
|
H | Tensioner Locking Pin (Mechanical) | T10115 |
| 303-1054 | MB995208 |
I | Tensioner Locking Tool (Hydraulic) | T10008 |
| 310-084, 23-058 |
|
J | Tensioner Setting Tool (Hydraulic) |
|
|
|
|
K | Auxiliary Belt Locking Pin | T10060A, T40098,T20167 |
|
|
|
Application:
.Model:
.Audi: A1 (10-12), A2 (01-06), A3 (01-12), A4/Allroad (99-12), A5 (08-12), A6/Allroad (98-11), TT (08-10), Q5 (08-12)
.Dodge: Caliber (06-11)
.Ford: Galaxy (99-06)
.Mitsubishi: Grandis (05-10), Lancer (05-10), Outlander (07-10)
.Seat: Alhambra (99-10), Altea (04-12), Altea XL (04-12), Arosa (99-05), Cordoba (02-09), Ibiza (02-10), Leon (00-12), Toledo (04-11)
.Skoda: Fabia (00-07), Fabia II (07-12), Octavia (00-10), Octavia II (04-12), Roomster (07-12), Superb (02-08), Superb II (08-12), Yeti (09-12)
.Volkswagen: Amarok (10-12), Beetle (00-11), Bora (98-08), Caddy/Maxi (03-12), Eos (06-10), Fox (05-11), Golf (98-12), Golf Plus (05-12), Jetta (05-11), Lupo (99-05), Passat/CC (98-12), Polo (99-12), Scirocco (08-12), Sharan (99-10), Tiguan (07-12), Touran (03-12), Transporter (03-12)
.Engine Code:
.Pumpe Duse:
.1.2D TDiPD: ANY, AYZ
.1.4D TDiPD: AMF, ATL, BAY, BHC, BMS, BNM, BNV, BWB
.1.9D TDiPD: AJM, ANU, ARL, ARX, ASZ, ATD, ATJ, AUY, AVB, AVF, AVQ, AWX, AXB, AXC, AXR, BJB, BKC, BKE, BLS, BLT, BMT, BPX, BPZ, BRB, BRM, BRR, BRS, BRU, BSU, BSV, BSW, BTB, BUK, BVK, BXE, BXF, BXJ
.2.0D TDiPD: AZV, BEW, BKD, BDJ, BDK, BGW, BHW, BKP, BLB, BMA, BMM, BMN, BMP, BMR, BNA, BPW, BRC, BRD, BRE, BRF, BRT, BSS, BST, BSY, BUY, BUZ, BVA, BVE, BVF, BVG, BVH, BWC, BWV
.Common Rail:
.1.2D TDiCR: CFWA
.1.6D TDiCR: CAYA, CAYB, CAYC, CAYD, CAYE, CLNA
.2.0D TDiCR: CAAA, CAAB, CAAC, CAAE, CAGA, CAGB, CAGC, CAHA, CAHB, CBAA, CBAB,CBAC, CBBA, CBBB, CBDA, CBDB, CBDC, CBEA, CCHA, CCHB, CDBA, CDCA, CEGA, CFCA, CFFA, CFFB, CFGB, CFHA, CFHB, CFHC, CFHE, CFHF, CFJA, CGLA, CGLB, CJAA, CJCA, CJCB, CLCA, CLCB, CLJA, CMEA, ECD (Dodge)
