.Introduction:

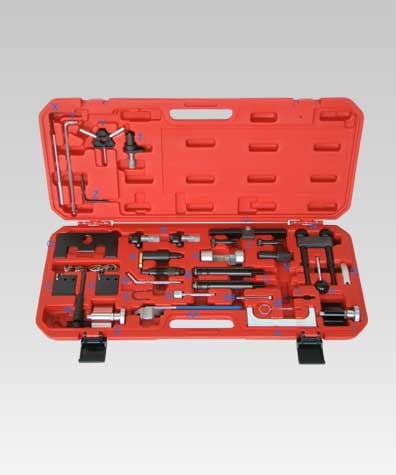

This new kit of twelve tools is required for petrol and diesel engine service including timing belt replacement on recent models and also older 1.9D models from 1976.
Item | Description | OEM |
A | Tensioner Socket | 3078 |
B | Crankshaft Locking Pin | 3242 | T30052 |
C | Fixing Gauge for Camshaft | T30094 | 3458 |
D | Injection Pump Locking Pin | 3359 |
E | Tensioner Locking Pin | T40011 |
F | Injection Pump Locking Pin | 3359 | T20102 | U40074 |
G | Tensioner Setting Tool | 23-058 | T10008 | 310-084 |
H | Camshaft Locking Tool | T10016 | T10074 | MP1 312 |
I | Crankshaft Pulley Setting Tool | T10100 |
J | Camshaft Setting Plate | T20038 | T10098 | MP1-1312 |
K | Camshaft Setting Bar | T10008 | 2065A | U40021 |
L | M5 × 55 Stud and Nuts | T10092 |
M | Tensioner Locking Pin | T40011 |
N | Injection Pump Timing Pin 15.4mm | 2064 | U20003 |
O | Camshaft Adjustment Tool | 3418 |
P | Crankshaft Locking Pin | T10121 |
Q | Fixing Pin |
|
R | Camshaft Aligning Tool | T10123 |
S | Crankshaft Pulley Setting Tool | T10050 | 310-085 |
T | Camshaft Aligning Tool | T10120 |
U | Front End Support Guides | 3369 |
V | Locking Pin ( 4, 7, 8 mm ) |
|
W | Chain Tensioner Retainer | 3366 |
X | Tensioner Pulley Locking Tool | T10265 |
Y | Tensioner Pulley Adjustment Tool | T10264 |
Z | Auxiliary Drive Belt Tensioner Locking Pin | T10060/T10060A | T20167 |
AA | Tension Pulley Holding Wrench | T10020 | V.159 |
AB | Screw |
|
