.Introduction:
This V8 petrol engine was first introduced by Jaguar in 1997 and is still in use today. Land Rover also started to use the later versions of the engine in 2005. There have been many changes, both in enginecapacity and components over the years, but most of the basic procedures for checking and adjusting engine timing, dis-mantling and assembly of the front-end gears, timing chain, camshafts etc., applies across the engine range.
The timing applications on early and later engines are covered by HL-8217.

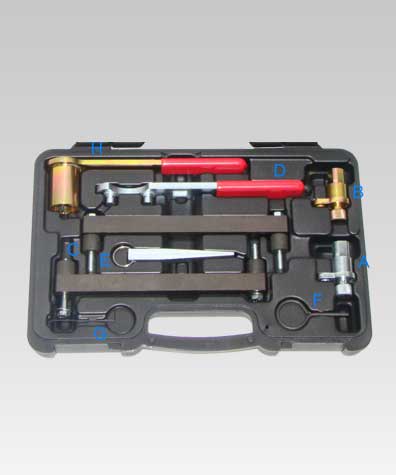

Item | Description | OEM |
A | Flywheel Locking Pin (Silver) | 303-531 |
B | Flywheel Locking Pin (Gold) | 303-645 |
C | Camshaft Setting Plate Set (Pair) | 303-530 |
D | Camshaft Gear Holding Tool | 303-532 |
E | Tensioner Wedge Set (Pair) | 303-533 |
F | Primary Tensioner Locking Pin | T40011 |
G | Tensioner Depress Pin |
|
H | VVT Unit Setting Tool | 303-654 |
.Application:
JAGUAR/LAND ROVER 3.2, 3.5, 4.0, 4.2, 4.4 V8 Petrol engines in
.JAGUAR:
Model | Engines | 3.2 | 4.0 | 4.2 | |||
XJ8(97-09) | AJ26 series | AC KB KC 3.5 RB | BC CC CE DC EC GB GC LB | LC MA MB NB NC PA PB | 1B 2B 3B 1G | 5G 9G HB HG | SB TB PC |
XJR(97-09) | AJ27 series | ||||||
S-Type(99-08) | AJ28 series | ||||||
XF(08-09) | AJ34 series | ||||||
XK8(97-09) |
| ||||||
XKR(98-09) |
| ||||||
|
| ||||||
|
| ||||||
.LAND ROVER:
Models | Engine | |
New Rang Rover (06-09) | 4.2 428PS | 4.4 448PN |
Range Rover Sport (05-09) | ||
Discovery III (05-09) |
|
|
