.Introduction:
Fiat 1.3 JTD | Vauxhall Opel 1.3 CDTi | Ford 1.3 TDCi | Suzuki Z13DT engines. This set of tools allows the user to check and adjust the Camshaft timing, remove and replace the Cam chain and perform complete engine rebuilds whilst maintaining the correct.

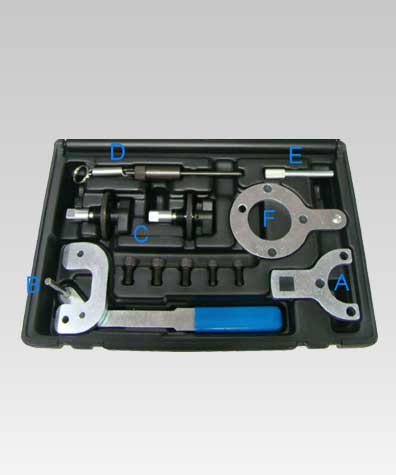

Item | Description | OEM Fiat | OEM Ford | OEM Vauxhall | OEM Suzuki |
A | Crankshaft Pulley Flange Holding Wrench | 1 871 000 200 | 303-1469 | KM-662-C |
|
B | Timing Chain Tensioner Lever | 1 870 900 400 |
|
|
|
C | Camshaft Alignment Tool (2) | 1 871 000 900 1 860 985 000 | 303-1472 | EN 46781 | 09917-68610 |
D | Flywheel Pin with Spring |
|
| EN 46785 | 09912-38300 |
E | 8mm Crank Locking (Fiat) | 8 mm |
|
|
|
F | Crankshaft Timing Position Tool | 1 870 900 300 | 303-1468 |
|
|
.Application:
Mark | Model | Type | Engine Code | Year |
Fiat | Punto | 1.3 JTD Multi-Jet | 188A9.000 | 2003-2007 |
Panda | 1.3 JTD Multi | 169A .000 | 188A8 000 | 2003-2009 | |
Idea | 1.3 JTD Multi | 199A3.000 | 188A9.0 0 | 2004-2006 | |
Doblo | 1.3 JTD Multi | 188A9.000 | 200 -2006 | |
Ford | KA | 1.3 TDCi |
|
|
Vauxhall/Opel | Agila | 1.3 CDTi | Z13DT | 2003-2008 |
Corsa-C | 1.3 CDTi | Z13DT | 2003-2007 | |
Combo-C | 1.3 CDTi | Z13DT | 2003-2009 | |
Corsa-D | 1.3 CDTi | Z13DTH | Z13DTJ | 2006-2009 | |
Astra-H | 1.3 CDTi | Z13DTH | 2004-2009 | |
Tigre-B | 1.3 CDTi | Z13DT | 2004-2009 | |
Meriva | 1.3 CDTi | Z13DT | Z13DTJ | 2004-2009 | |
Suzuki | Ingis | 1.3 CDTi | Z13DT | 2003-2009 |
Wagon | 1.3 CDTi | Z13DT | 2003-2009 | |
Swift | 1.3 CDTi | Z13DT | 2003-2010 |
