.Introduction:

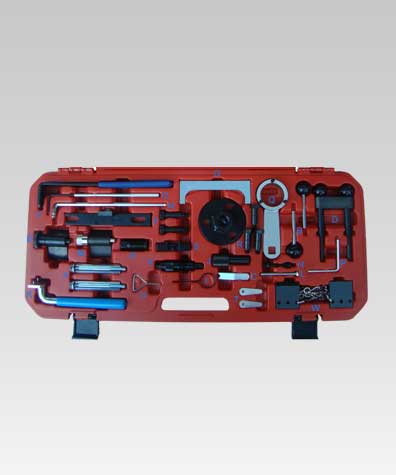

Essential tools for VAG petrol and diesel engines, from 1996 onwards. The kit also includes tools suitable for older models with 1.9 diesel engines. Set includes Crankshaft Pulley Locking Tools for round (T10050) sprockets at 12 o’clock position.
This kit has been designed to fit the newest Common Rail diesel engines which are significantly different from the older PD engines.
These CR engines combine belt and gear drives by using a toothed belt to transfer the drive from the crankshaft to one of the cam shafts then using gears to transfer the drive from one cam to the other.
Item | Description | OEM |
A | Support Guides | 3369 | T30092 |
B | Injection Pump Pulley Locking Pin x 2 | 3359 | T20102 | U40074 |
C | Tensioner Locking Tool | 23-058 | T10008 | 310-084 |
D | Camshaft Locking Tool | T10016 | T10074 |
E | Crankshaft Locking Tool | 23-059 | T10050 | 310-085 |
F | Camshaft Setting Plate | T20038/MP-1-312/3418 |
G | Camshaft Setting Bracket | 2065A | U-40021 |
H | Stud and Nuts | M5 x 55 mm |
I | Tensioner Retaining Pins | T40011 |
J | Injection Pump Pulley Timing Pin 15.4 mm | 2064 | U20003 |
K | Tension Wrench | T10020 | V.159 | 3387 | U-30009 |
L | Set Screw | M5 x 60 mm |
M | Crankshaft Pulley Locking Tool (Non-Bored) | T10100 |
N | Tensioner Pulley Adjustment Tool (2.4 mm Hex Key) | T10264 |
O | Tensioner Pulley Locking Tool | T10265 |
P | Auxiliary Tensioner Locking Tool (3.9 mm) | T40098 |
Q | Sprocket Holding Tool | T10051 |
R | Cam Sprocket Hub Puller | T10052 |
S | Oil Pump | Balancer Shaft Alignment | T10255 |
T | Shim Set (2) | Shims |
U | Tensioner Pin | T10115 |
V | Tension Lever | T10020/3387 |
W | Fixing Gauge for Camshaft | T30094 | 3458 |
X | Locking Pin for Crankshaft | T40069 |
.Application:
Manufacturer | Model | Size | Year | Engine Code |
Audi | A3 | 1.6 | 2009- | CAYB | CAYC |
A3 | A4 | A6 | Q5 | 2.0 | 2007- | CBAB | CBBB | CBAA | CFFB | CAGA CAHA | CAGB | CAHB | CAGC | |
Seat | Exeo | 2.0 | 2009- | CAGA | CAHA | CAGA |
Volkswagen | Golf Golf Plus | 1.6 | 2009- | CAYB | CAYC |
Tiguan Passat Eos Golf Golf Plus | 2.0 | 2008 | FCA | CAAA | CAAB | CAAC | CCHA CAVA | CBAB | CBDA | CBDD | CBBB CBAA | CBAC | CBDA | CBDC |
