.Introduction:
Essential tools for timing belt replacement on wide range of Renault, Nissan & Vauxhall/Opel diesel engines.
Assembled to offer coverage for the 1.6 and 2.0 petrol engines from Renault that are used in the Nissan range.
This locking tool enables the diesel pump to be locked in position whilst servicing the timing belt on the Renault 1.9 Dti engines.

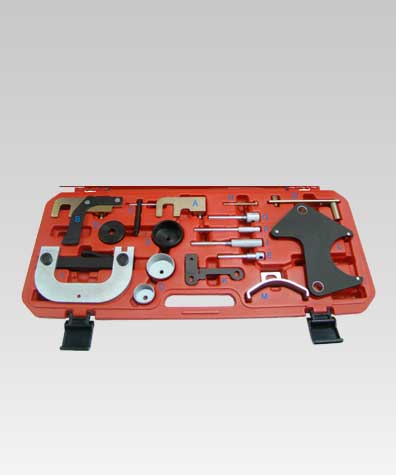

Item | Description | OEM |
A | Inlet Camshaft Locking Tool | KM 6205 / MOT 1534 |
B | Exhaust Camshaft Locking Tool | KM 6204 / MOT 1537 |
C | Pump Locking Pin | MOT 1538 |
D | Tensioner Tool Set (5 Parts) | MOT 1543 |
E | Crankshaft Timing Pin | MOT 1054 |
F | Crankshaft Timing Pin | MOT 1536 |
G | Crankshaft Timing Pin | MOT 1489 |
H | M6 Tensioning Adjustment Screw | M6 x 30 mm |
I | Crankshaft Locking Pin | MOT 1489 |
J | Camshaft Setting Bar | MOT 1496 |
K | Mounting Bracket | MOT 1750 |
L | Camshaft Sprocket Alignment Tool | MOT 1490-01 |
M | Timing Injection Pump Holder | MOT 1200-01, MOT 1200-1 |
.Application:
.Model:
.Renault: Avantime (05-07), Clio II (01-06), Clio III (05-08), Espace (00-08), Kangoo (00-08), Laguna (99-01), Laguna II (04-07), Master (00-06), Megane (99-03), Megane II (02-08), Modus (04-08), Scenic (99-03), Scenic II (03-08), Trafic (01-08), Twingo (07-08)
.Nissan: Almera N16 (02-06), Interstar (02-06), Kubistar (03-08), Micra K12 (03-08), Note (06-08), Primastar (02-07), Primera P12 (03-07), Qashqai (08-09)
.Vauxhall/Opel: Movano (00-08), Vivaro (01-08)
.Engine Code:
1.5 – K9K, 1.9 – F9Q, 2.2 – G9T, 2.5 – G9U
To prevent the engine shafts (camshaft, crankshaft) from turning belt tensioner when changing a timing belt or during other engine repairs.
Manufacturer | Model | Engine Code | Year |
Clio / Clio lll | 1.4 / 1.6 | K4J 712 | 713 | 750 K4M 700 | 701 | 720 724 | 748 | 2003 |
Megane / Scenic | 1.6 | 1998 | |
Laguna | 1.6 | 1998 | |
Clio Sport | 2.0 | F4P | 760 | F4R | 700 701 | 730 | 740 | 741 | 780 | 1998 |
Megane | Scenic | 2.0 | 1998 | |
Laguna | 1.8 / 2.0 | 1998 | |
Espace | 2.0 | 1998 |
Injection Pump Locking Tool for Renault Clio, Megane, Laguna, Kangoo 1.9 DTi engines.
.Engine Code: F9Q 717/731/780
