.Introduction:
This Timing Tool kit is specifically designed for Fiat chain driven engines fitted to the Vauxhall/ Opel/Saab 1.3 CDTi and 1.9 CDTi belt driven models

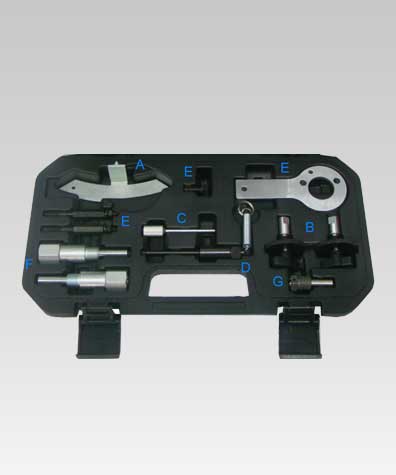

Item | Description | OEM |
A | Flywheel locking Tool | 1 860 898 000 |
B | Camshaft Alignment Tool (2) | EN-46781 |
C | Auxiliary drive belt tensioner holding pin | KM 6130/KM6349 |
D | Crankshaft Alignment Pin c/w Retention Spring | EN-46785 |
E | Crankshaft Alignment Tool | EN-46788/1 860 905 000 |
F | Camshaft Alignment Tool (2) | EN-46789 |
G | Camshaft Alignment Screw for use when high pressure pump remains fitted | EN-46789-100 |
.Application:
| Model | Style | Engine Code |
Opel / Vauxhall Chain | Agila | 1.3 CDTi / D | Z13DT |
Astra-H | 1.3 CDTi / D | Z13 DTH | |
Combo-C | 1.3 CDTi / D | Z13DT / Z13DTJ | |
Corsa-C | 1.3 CDTi / D | Z13DT | |
Meriva | 1.3 CDTi / D | Z13DT / Z13DTJ | |
Tigra-B | 1.3 CDTi / D | Z13DT | |
| Astra | 1.9 CDTi / D | Z19DT / Z19DTH | |
Astra-H | 1.9 CDTi / D | Z19DTH / Z19DTJ | |
Signum | 1.9 CDTi / D | Z19DTH | |
Vetra-C | 1.9 CDTi / D | Z19DTH | |
Zafira-B | 1.9 CDTi / D | Z19DTH | |
| 9-3 | 1.9 TiD | Z19DTH / Z19DTR | |
9-3 | 1.9 TTiD | Z19DTH / Z19DTR | |
9-5 | 1.9 TiD | Z19DTH / Z19DTR |
