Introduction:

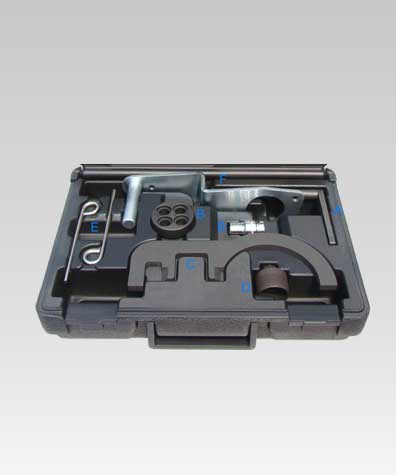

Essential tools for timing the BMW/Mini N47/N57 1.6, 2.0 and 3.0 diesel chain drive engines. Kit includes camshaft setting plate, flywheel locking pin and crankshaft turning tool. Kit also includes HP pump sprocket retaining tool required during pump removal/replacement applications.
Item | Description | OEM |
A | Flywheel Locking Pin | 11.5.320 |
B | Crankshaft Turning Tool | 11.6.480 |
C | Camshaft Setting Plate | 11.8.760 |
D | HP Pump Sprocket Retaining Tool | 11.8.740 |
E | Flywheel Timing Pin | 11.3.340 |
F | Crankshaft Holding Tool | 11.4.320 |
Application:
Model:
BMW: 114d F20/21 1.6D (12-14), 116d E81/82/87/88 (08-12), 116d F20/21 2.0D (11-13), 118d E81/82/87/88 2.0D (07-14), 118d F20/21 2.0D (11-13), 120d 2.0D E81/82/87/88 (07-14), 120d/xDrive F20/21 2.0D (11-13), 123d E81/82/87/88 2.0D (07-14), 125D F20/21 2.0D (12-13), 316d E90/91/92/93 2.0D (09-12), 316d F30/31 2.0D (12-13), 318d E90/91/92/93 2.0D (07-12), 318d F30/31 2.0D (12-13), 318D F30/31 2.0D (12-13), 320d E90/91/92/93 2.0D (07-12), 320d/EfficientDynamics E90/91/92/93 2.0D (10-12), 320d/xDrive F30/31 2.0D (12-13), 325d E90/91/92/93 3.0D (10-14), 330d E90/91/92/93 3.0D (08-13), 330d/xd E90/91/92/93 (08-14), 520d E60/61 2.0D (07-10), 520d F10/11 2.0D (10-13), 520d/EfficientDynamics F10/11 2.0D (11-13), 520d/xDrive F10/11 2.0D (11-13), 525d F10/11 3.0D (10-12), 530d F10/11 3.0D (10-13), 530d/xDrive F10/11 3.0D (11-13), 530dGT F07 (09-12), 530d/xDrive GT F07 3.0D (09-12), 535d F10/11 3.0D (10-12), 535d/xDrive GT F07 3.0D (10-12), 535d/xDrive F10/11 3.0D (11-13), 535dGT F07 (10-12), 640d/xDrive F12/13 3.0D (11-13), 730d F01/02/04 3.0D (08-12), 730d/Ld F01/02/04 (08-12), 730d/xDrive F01/02/04 3.0D (09-12), 740d F01/02/04 (09-12), 740d xDrive F01/02/04 (09-12), M550d/xDrive F10/11 3.0D (12-13), X1 E84 2.0D (09-13), X1 F84 2.0D (09-13), X1 sDrive 18d E84 (09-12), X1 sDrive 20d E84 (09-12), X1 xDrive 18d E84 (09-14), X1 xDrive 20d E84 (09-12), X1 xDrive 23d E84 (09-12), X3 E83 2.0D (07-10), X3 F25 2.0D (11-13), X3 F25 3.0D (11-13), X3 xDrive 18d E83 (08-10), X3 xDrive 30d E83 (11-12), X5 E70 3.0D (10-12), X5 xDrive 40d E70 (10-13), X6 E71/72 3.0D (10-13), X6 xDrive 30d E71/72 (10-14), X6 xDrive 40d E71/72 (10-14)
Mini: Clubman (10-14), Clubvan (12-14), Countryman (10-14), Mini (10-14), Paceman (13-14), Roadster (12-14)
Engine Code:
N47/N47S: C16K1, C16U1, C20K1, C20U1, D16, D20A, D20A/O0, D20A/0U0, D20B, D20C, D20C/K1, D20C/O1, D20C/U1, D20D/T0, D20D/T1, D20O0, D20O1, D20C/O1, D20T0, D20U0, SD20B/D/T0, TD20K1, TD20U1
N57: D30A, D30A/O0, D30B/TO, D30C/S1, D30B/T0, D30O0, D30O1, D30TO, D30T0, D30UO, D30U0
