.Introduction:
BMW Mini and Peugeot (PSA) developed a series of engines as part of an ongoing collaboration. The W16D diesel engine was developed as part of this collaboration to incorporate the latest technologies giving the best performance, economy and emissions possible.
This kit has been designed to allow the user to replace the timing belt on these engines.
The W16D engine is a twin camshaft 16v engine but only one of the camshafts is driven by the belt, the other shaft is driven by a transfer chain situated in the head.

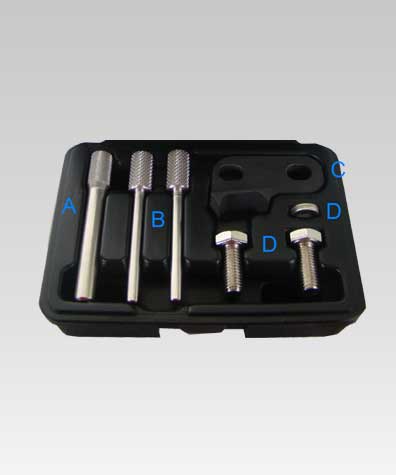

Item | Description | OEM PSA | OEM BMW |
A | Crankshaft Timing Pin | 0194A | 11 9 790 |
B | Camshaft/High Pressure Fuel Pump Timing pin(2) | 0194B | 11 0 300 |
C | Flywheel Holding Tool |
| 11 9 851 (Part 1 of 11 9 850) |
D | Fixing Bolts Flywheel Holding Tool |
| 11 9 852 (Part 2 of 11 9 850) |
.Application:
Manufacturer | Model | Type | Engine Code | Year |
BMW Mini | Mini / Mini Clubman | 1.6 diesels | W16D16(9HZ) /W16D16UO chassis R55 / 56 / 57 | 2007-2010 |
Citroen | C2 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2007-2010 |
C3 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2005-2010 | |
Xsara Picasso | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2005-2010 | |
C4 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2004-2011 | |
C5 MkII | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2004-2008 | |
C4 Picasso | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2006-2010 | |
| Grand Picasso | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2006-2010 |
| C5 Mk III | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2007-2011 |
Citroen | Berlingo Mk III | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2008-2012 |
| C3 Picasso | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2009-2010 |
Peugeot | 206 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2004-2007 |
| 206cc | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2005-2007 |
| 207 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2006-2010 |
| 1007 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2006-2010 |
| 307 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2004-2008 |
| 207cc | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2007-2010 |
| 308 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2007-2010 |
| 308cc | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2009-2010 |
| 3008 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2009-2011 |
| 5008 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2009-2010 |
| Partner MK3 | 1.6 diesels | 9HZ/9HX/9HY (DV6TED4) | 2008-2012 |
