.Introduction:
Basic position of camshafts for a 40 crank angle after top dead center.

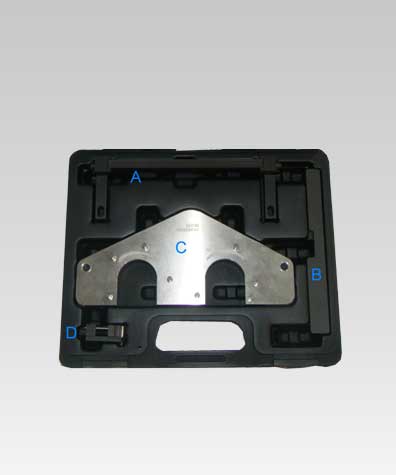

Item | Description | OEM |
|
A | Camshaft Holding Tool | 156 589 00 61 00 | Retaining fixture makes it possible to position the camshaft while installed. This allows loosening and tightening of the camshaft gear attachment bolts |
B | Camshaft Alignment Tool | 156 589 00 61 00 | |
C | Camshaft Position (CMP) Sensor Disc Setting Tool | 156 589 00 32 00 | Used to lock sensor rotors of camshaft adjuster during assembly. |
D | Two Piece Inlet Camshaft Gear Alignment Tool | 156 589 01 63 00 | For fixed camshaft adjustment gear |
.Application:
Benz: AMG 156 ML 63, AMG S 63L, AMG S 63, AMG R63, AMG L 4MATIC R63, AMG 4MATIC E63, AMG CLS 63, AMG CLK 63, AMG CLK 63, AMG Black Series CLK 63, AMG Cabriolet CL 63
