.Introduction:
This kit introduces the tools required to set the valve timing on the extensive range of DW10 and DW12 diesel engines found in the PSA and Fiat ranges.
The DW10 engine range has a 2.0 liter capacity and was introduced in 1998; it appears in both single and twin overhead camshaft arrangements. The twin cam 16-valve systems have one camshaft driven by the cam belt and the second camshaft driven by a chain in the head.
The DW12 range is 2.2 liters capacity and was introduced in 2000

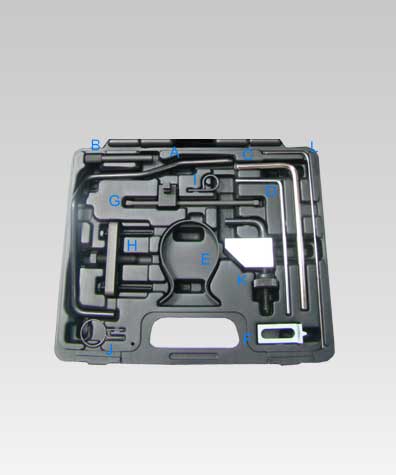

Item | Description | OEM |
A | Crankshaft Locking Pin (8 mm) | 0188Y |
B | Camshaft Locking Pin | 0188M |
C | Flywheel Locking Pin | 0188X |
D | Auxiliary Drive Belt Tensioner Locking Pin (4 mm) | 0188Q1 |
E | Cam Belt Retaining Clip | 0188K |
F | Flywheel Holding Tool | 0188F |
G | Cam Belt Tensioner Tool | 0188J2 |
H | Crankshaft pulley Puller / Extractor | 0188P |
I | Cam Belt Tensioner Locking Pin | 0153AL/4200TA |
J | Crankshaft Pulley Centralization Tool | 0188AH |
K | Cam Belt Clamp | 0188AD |
L | Auxiliary Belt Tensioner Locking and Crank Pinion Alignment Tool (See Instructions) | 0188Q2 |
.Application:
Citroen 2.0lt | C4 04-12 / C5 99-12 / C8 02-12 / DS4 11-12 Berlingo 99-07 / Dispatch, Jumpy, Relay 99-12Synergie, Evasion 99-07 Xantia 98-01 / Picasso 99-07, Picasso, Grand Picasso 06-11 |
Citroen 2.2lt | C-Crosser 07-12 / C5 00-09 / C6 07-11 / C8 01-10 Relay / Jumper 02-06 |
Peugeot 2.0lt | Expert 99-12 / Boxer 01-06 / 206 99-06 / 306 99-02 / 307 01-09 406 99-04 / 407 04-11 / 308 07-12 / 607 00-11 / 806 99-02 / 807 05-10 508 11-12 / 3008 09-12 / 5008 09-12 / RCZ 10-12 |
Peugeot 2.2lt | 406 00-06 / 407 05-11 / 508 11-12 / 607 00-09 / 807 07-10 / 4007 07-10 Boxer 02-06 |
Fiat 2.0lt | Ulysse 03-11 / Scudo 04-12 / Ducato 01-06 |
Fiat 2.2lt | Ulysee 02-11 / Ducato 06-12 |
Engine code: | |
2.0lt | DW10ATED4 / DW10JATED4 / DW10BTED/L3 / DW10ATD /DW10TD / DW10ATED / D10BTED / DW10UTD / DW10TD / DW10CTED 4 RHA / RHE / RHF / RHG / RHH / RHJ / RHK / RHM / RHR / RHS / RHT / RHV / RHW / RHX / RHY / RHZ |
2.2lt | DW12MTED4 / DW12BTED4 / D12TED4/L4 / DW12UTED/ DW12ATEDL/L4 / DW12CTED4 / 4HK / 4HL / 4HN / 4HP / 4HR / 4HS / 4HT 4HW / 4HX / 4HY / 4HZ |
