* 1/2" Drive
* Forward Torque Control Range: 44~ 162 ft/ lbs (60-220Nm)
* Forward Max. Torque: 400 ft / lbs ( 540Nm )
* Reverse Max. Torque: 600 ft / lbs ( 810Nm )
* Free Speed: 6000 R.P.M.
* Net Weight: 2.5 Kgs ( 5.5 Lbs )
* Avg. Air Consump.: 4.5 CFM
* Working Pressure: 90 PSI
* Air Inlet: 1/4"
* Air Hose: 3/8" ID

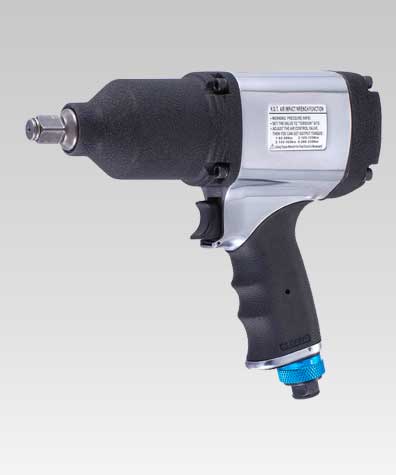

How to use the 1/2" DR. H.D.T. impact wrench?
* Set up the working pressure at 90 psi . ( 6.2 bar , 6.3 kg/cm2 , 620 kPa )
* Refer to picture " C " , Set the valve to " TORSION " position.
* Refer to picture " D " , Adjust the air control valve , Then you can get output torque:
1 : 60 - 80 Nm (44~59 ft/lbs)
2 : 105 - 125 Nm ( 77~92 ft/lbs))
3 : 145 - 165 Nm ( 107~122 ft/lbs)
4 : 200 - 220 Nm ( 148~162 ft/lbs)
* If other Torque/ Torsion required. Please adjust the " C " control valve.
* The special set torque accepts to order production.
.Packing:
6 / 15 / 16 / 0.9'
