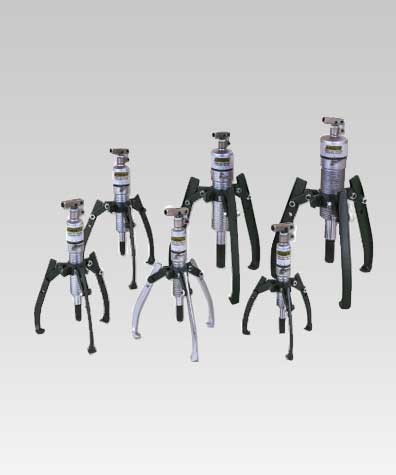

*Four Stages of Foldable & Removable Handles Save the Handle Force During Operation.
*360° Rotary Socket.
*3 Self-Contained Hydraulic Pump and Puller Body with Integral Safety Valve.
*Heat-Treated & Chrome Plated Hydraulic Cylinder Rod Provides Linear Force.
*Easily Release Valve.
*6 Springs Loaded Live Centering Nut for Easy Job (Removable).
*2/3-Jaw Combination Puller Crosses Head with Manganese-Phosphate Plated for Rust Proof and Durability.
*Heat Treated Forged Alloy Steel Cross Bolts & Jaws with Manganese-Phosphate Plated for Rust Proof and Long Life Service.
*Patent Pended Design of Two Stages Stroking for PM2000 & PM3000, the First Stage being as Fast Stroking for Quickly Connecting with Object, and the Second Stage being as High Hydraulic Output for Pulling Job.
*Long Jaws and Extension Rods are Available, Allow User to Extend the Stroke according to the Needs.
Capacity | Model No. | Reach (Max mm) | Spread (Max. mm) | Stroke (mm) | Pump Tip (mm) | Jaw Tip (mm) | Weight (Kg) | ||||
H | E | F | G | A | B | C | |||||
4 Ton | HP40400 | 185 | 225 | 60 | 42 | 22 | 84 | 11 | 6 | 22 | 6 |
6 Ton | HP40600 | 220 | 330 | 70 | 45 | 23 | 94 | 13 | 10 | 22 | 10 |
8 Ton | HP40800 | 230 | 360 | 85 | 50 | 25 | 122 | 11 | 10 | 25 | 10 |
12 Ton | HP41000 | 270 | 375 | 85 | 60 | 28 | 118 | 14 | 10 | 29 | 10 |
20 Ton | HP42000 | 360 | 520 | 110 | 80 | 40 | 160 | 20 | 27 | 33 | 27 |
30 Ton | 360 | 550 | 110 | 90 | 50 | 155 | 20 | 27 | 38 | 27 | |
