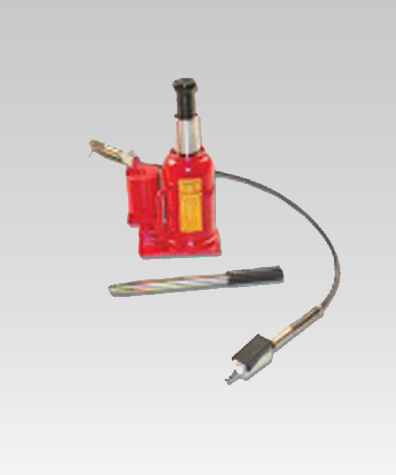

> Hydraulic Tool > Jack
*Low Profile Design for Most of Industrial Applications.
*Forging Base as the Strongest Construction to Catch the Needs in Industry Market.
*Housing Welding onto the Forged Base Makes to be Free of Leakage Problem as well.
*Telescopic Design of AJ120 and AJ220 Reaches the Extra Height Needed during Operating to Save Time and Labor Cost.
Model No. | HJ40120A | HJ40220A | HJ40300A | HJ40500A |
Capacity | 12 | 22 | 30 | 50 |
A (mm) | 241 | 240.5 | 229 | 304 |
B (mm) | 389.5 | 369.5 | 441 | 475 |
C (mm) | 469.5 | 449.5 | *** | *** |
D (mm) | 148.5 | 129 | 162 | 171 |
E (mm) | 80 | 80 | *** | *** |
F (mm) | 39.95 | 56 | 65 | 75 |
G (mm) | 29.5 | 29.5 | *** | *** |
H (mm) | 89 | 114 | 140 | 163 |
I (mm) | 42 | 42 | *** | *** |
J (mm) | 180 | 205 | 235 | 260 |
K (mm) | 160 | 185 | *** | *** |
L (mm) | 105 | 130 | *** | *** |
M (mm) | 107 | 132 | *** | *** |
Hose Length | 5' | 5' | 5' | 5' |
Handle Length (mm) | 630 | 630 | 630 | 630 |
